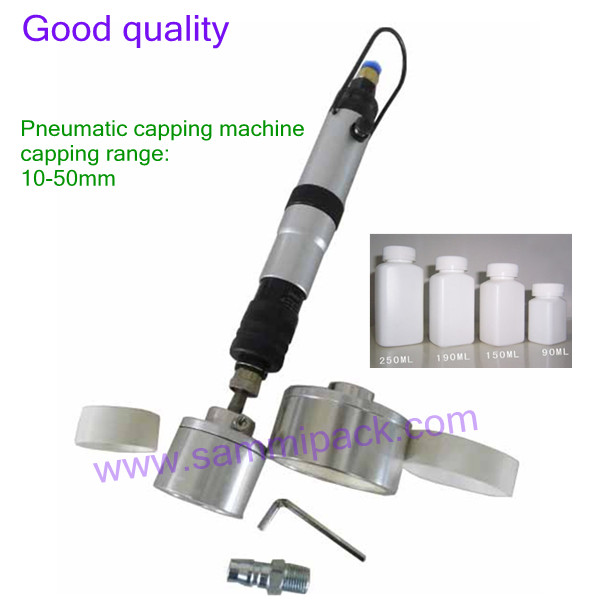

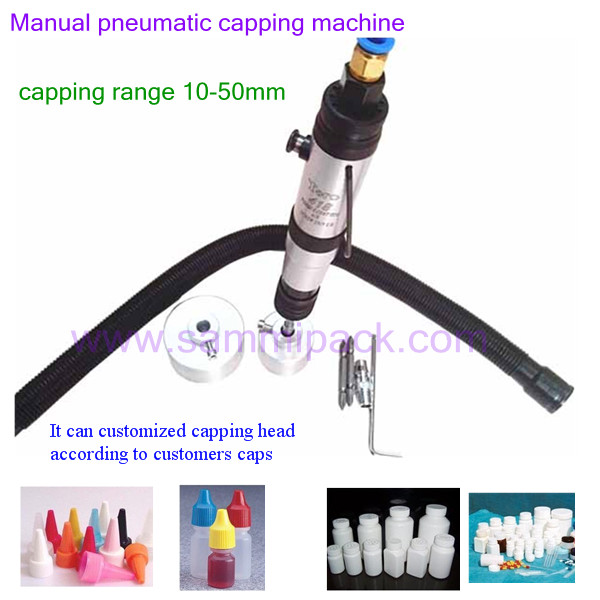

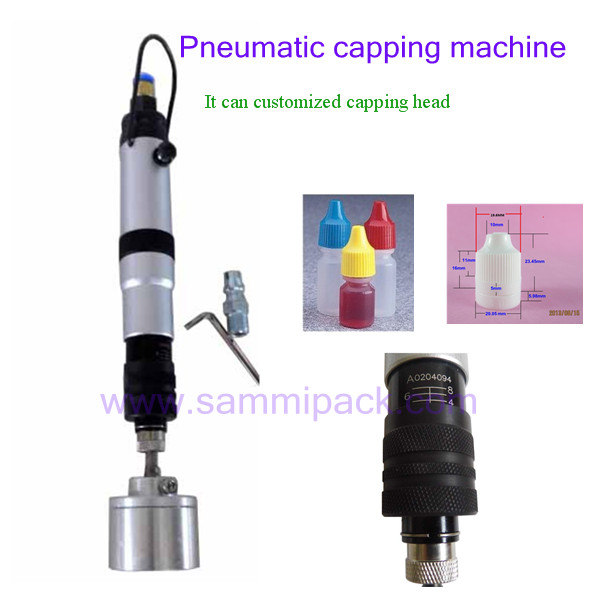

Hand held pheumatic capping machine

Application:

Portable capping machine for various cap size, widely used in pharmaceutical, pesticide and lubricating oil and so on industries small quantity production.
Handheld pneumatic capping machine is a manually operated device mainly used for tightening or loosening bottle caps with specifications of 10-30mm . It can effectively reduce labor intensity and ensure capping quality, and belongs to the field of general machinery. This device is driven by pneumatic drive to achieve capping operation. The whole machine consists of a host, an aluminum capping card head, and a buffer plug, which is suitable for packaging in industries such as food, medicine, and daily chemical
Hand held pheumatic capping machine Features:

Adopt adjustable clutch which can effectively avoid damaging the cap and reducing the wearness of the inner parts.
Suitable for various caps, widely used.
Capper will automatically stop when the cap is screwed tightly.
Portability, easy operation, and reliable running guarantee the capping quality.
The suspend fittings is optional. you can hang the capper to reduce the strength of work.

Parameter of  Hand held pheumatic capping machine:

Capping range  10~30mm
Size  L300×MaxΦ35/ L310×MaxΦ40
Clutch  12 levels adjustable/ 6 levels adjustable
Rotate without burden: 1000 turns/min
Air consumption 0.02 m3­/min
Air pressure   4-6 Kilogram
Length  245mm
Weight  1000 g

Chuck Size Available  : 20-30 MM,30-40 MM,40-50 MM,50-60 MM
